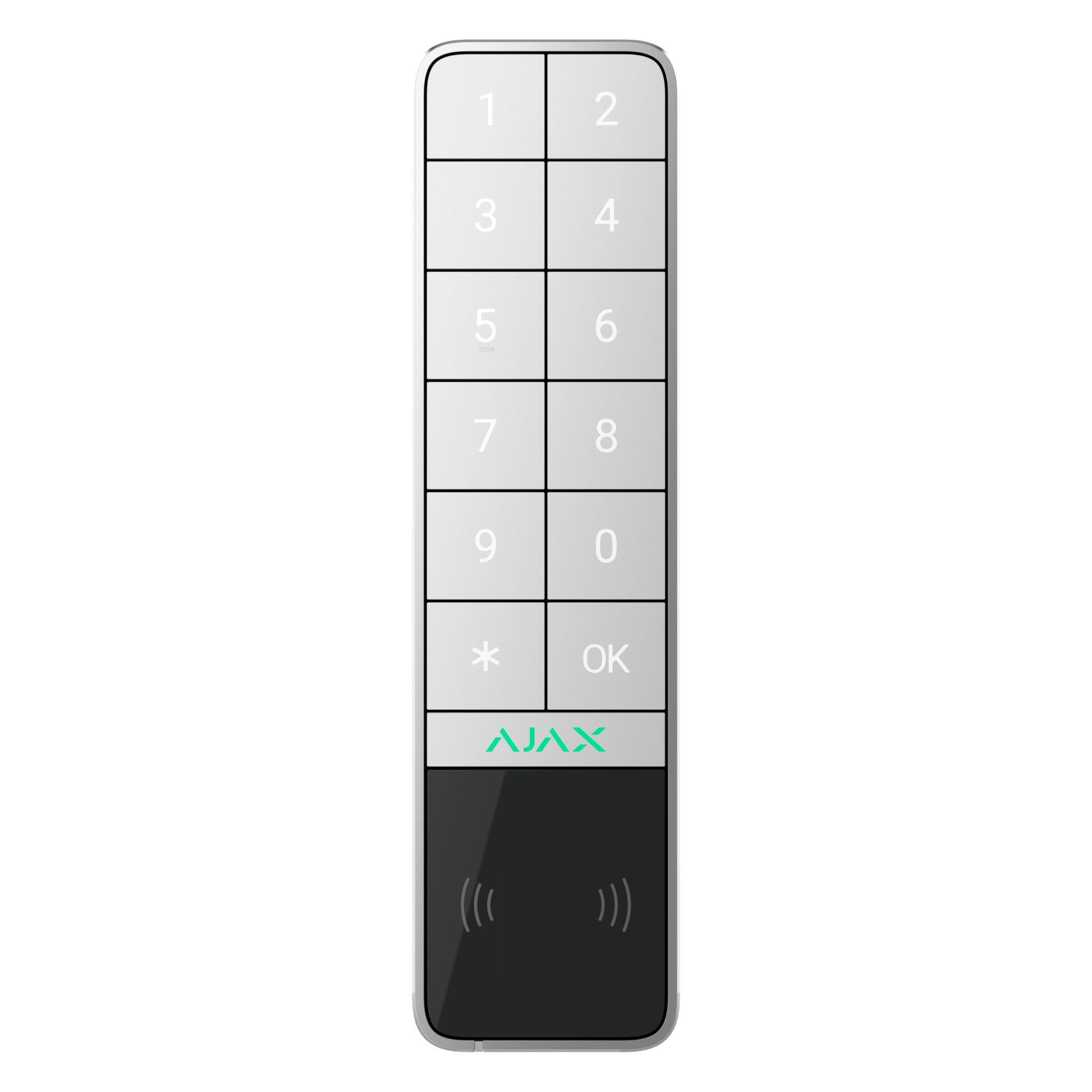

Ajax KeyPad Outdoor Jeweller – Wireless Outdoor Security Keypad

Compatibility:

Works with all Ajax hubs running OS Malevich 2.33 or later. Add it to your existing system via QR code pairing in the Ajax app — configure user access, functions, LED & buzzer settings all from the app

Ideal For:

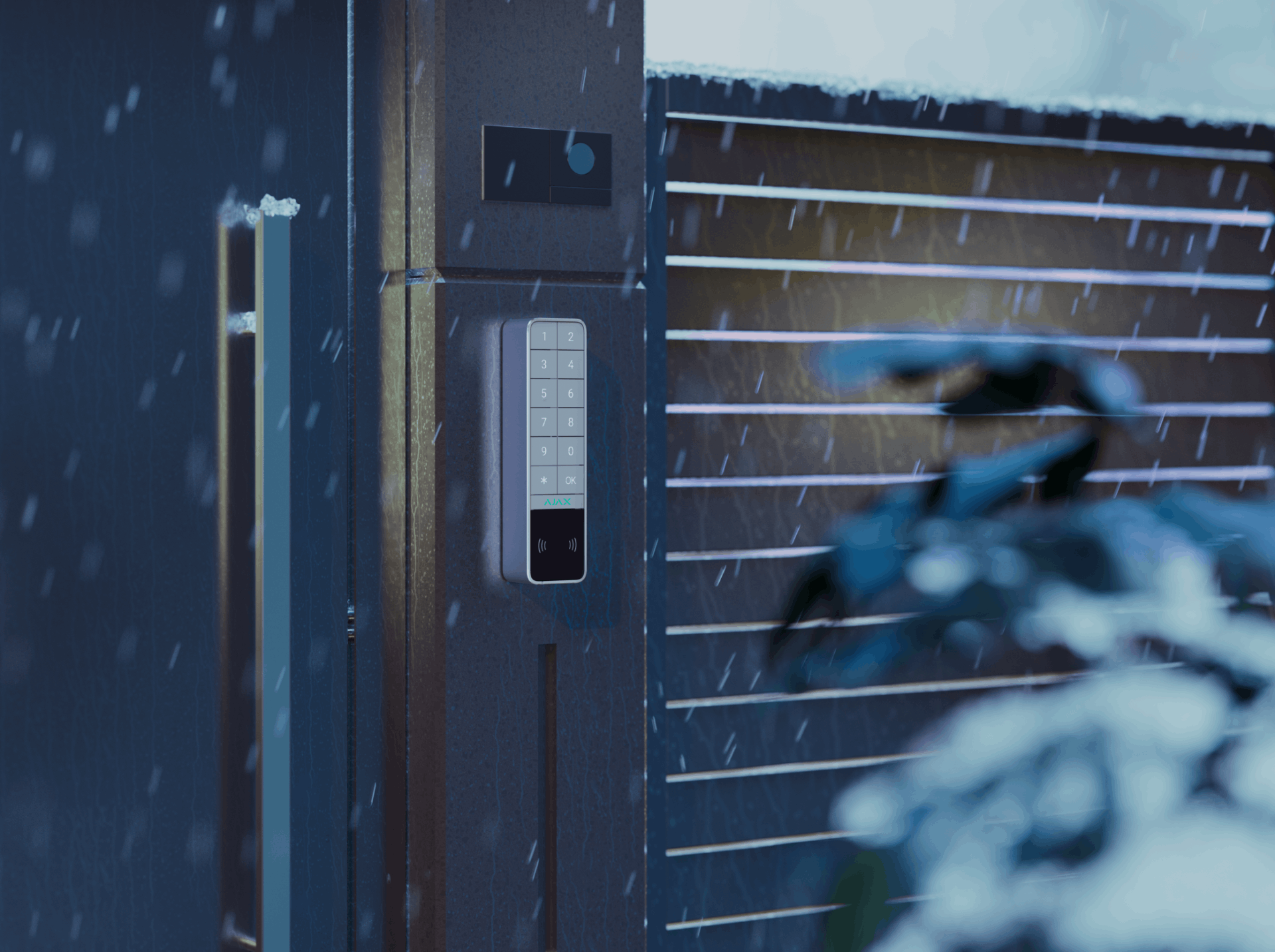

Gate or external entry control
Residential and commercial security systems
Multi-user access management
Integrating security with automation scenarios like lights or gate

Wireless outdoor keypad for Ajax alarm systems
One-touch automation control for doors, lights, relays and valves
Multi-method access: PIN codes, Pass/Tag key fobs and Bluetooth smartphone access
Visual LED feedback showing system and automation status
Weather-resistant, glove-friendly design with backlit buttons
Built-in buzzer for alarms, arming/disarming and door chime alerts
Advanced access management with personal, temporary and RRU codes
Panic and duress codes for emergency situations
Encrypted Jeweller radio communication with long-range wireless performance
Full event logging and remote management via Ajax apps

Specifications:

Security & Automation: Switches security modes, manages automation devices, starts entry delays.
Access Methods: PIN codes, personal and duress codes, Pass/Tag key fobs (DESFire® EV1/EV2/EV3), smartphone (Bluetooth).
Code Capacity: Up to 50 personal codes, duress codes, and codes for unregistered users; one code per keypad.
Anti-Tamper Protection: Locks for 3–180 minutes after repeated incorrect code attempts; safeguards against code guessing.
Power Supply: 2 × CR123A batteries (up to 3 years); optional 10.5–14 V⎓, 1 A.
Durability: IP66 weatherproof, IK08 impact-resistant, operates from -25°C to +60°C, up to 80% humidity.
Size & Weight: 170 × 45 × 31 mm, 258 g.
Warranty: 24 months.

Ajax KeyPad Outdoor Jeweller
SmartBracket mounting panel
Pre-installed batteries (varies by model)
Installation kit and manual
