Hills Alarm Sensor | Optex FlipX Security PIR 12M Wide / 18M Narrow with Pet Immunity & Bracket

Hills Alarm Sensor | Optex FlipX Security PIR 12M Wide / 18M Narrow with Pet Immunity & Bracket

$53.50
$53.50
Tax included. Shipping calculated at checkout.

The latest Optex Flipx security Pir motion detector provides 12m 85 degrees Wide security detection.  Compatible with most security alarm systems, this motion PIR sensor features intelligent inbuilt  pet immune technology up to 18kg to help discriminate against small rodents and pests causing unnecessary  false alarms.

Product Description

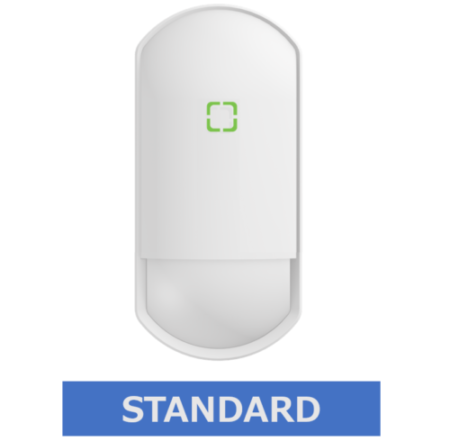

OPTEX FLIPX PIR with PET IMMUNITY

  • Flip Lens
  • Pet Tolerance
  • Human-Catch Element
  • Easily viewable LED
  • Compliant to EN-Grade II

SPECIFICATIONS:

Part Name FLX-S-ST-BKT (Includes Wall/Ceiling bracket)
Model Standard
Mounting height 2.0 to 3.0 m
Detection method Passive infrared
PIR coverage Wide: 12m 85°/ Narrow: 18m 5°
Alarm period 2.0 ± 0.5 s
Warm up period Approx. 60 s (LED blinks)
Power input 9.5 to 16 VDC
Current draw 8 mA (normal) 11 mA (max.) at 12 VDC
Trouble output -
Alarm output N.C. 24 V DC 0.1 A max. (Resistive load)
Tamper output N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Remote LED -
Operating temperature -20°C to +50°C
Temperature compensation Digital (SMDA)
Environmental humidity 95% RH max.
Mounting Wall, Corner (Indoor)
Weight 90g
