Ness D8XCEL 4G Alarm + Navigator Keypad & GUARDALL GP15 PIR KIT

Ness D8XCEL 4G Alarm + Navigator Keypad & GUARDALL GP15 PIR KIT

Sale
$639.00
$639.00 $899.00
Tax included. Shipping calculated at checkout.

Secure up to 8 alarm zones with this exceptional Ness Security D8Xcel alarm kit and experience the highest quality security protection. Included in this alarm kit are two Pet Immune Guardall security motion sensor PIRs  and built in 4G dialler for self monitoring via an app or back to base security monitoring if you prefer.  Rating as the security Installers  choice when it comes to user friendly quality alarms, this Australian made alarm is guaranteed to provides peace of mind and protection with added ability to have complete control of your Ness alarm via a Free Ness Mezz0 app Ness Mezz0 app when paired with the Ness Bridge Ethernet Module Ness Bridge Ethernet Module for cost effective self monitoring and alarm control. * Supplied with a Ness SIM card for your convenience. You can choose to activate the Ness SIM or BYO SIM on a network of your choice. Supplied with a Ness SIM card for your convenience. You can choose to activate the Ness SIM or BYO SIM on a network of your choice.

Details

Can I upgrade my old Ness alarm system with the Ness D8XCEL4G panel?

Yes. The Ness D8XCEL4G is specifically designed as an upgrade solution for older Ness alarm systems while often allowing you to reuse existing alarm wiring, PIR motion sensors, reed switches and sirens. This can significantly reduce installation costs compared to a complete new system.

Is the Ness D8XCEL4G suitable for self-monitoring?

Yes. The system is extremely popular for self-monitoring because it provides remote access and SMS/app notifications without mandatory ongoing monitoring fees

Can I reuse my existing alarm sensors and wiring?

In many installations, existing wired PIR detectors, reed switches, sirens and alarm cabling can often be reused if they are functioning correctly. This makes the D8XCEL4G a cost-effective alarm upgrade solution

Is the Ness Navigator keypad easy to use?

Yes. The Navigator keypad features a modern touchscreen interface designed for simple day-to-day operation and easy menu navigation.

Features

• 8 or alarm zones
• Supports up to 3 mixed keypads (Ness Navigator/Saturn/Ness Security KPX LCD Keypad ) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optiona Ness Security Radio Receiver for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, cool rooms etc.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Ness sensors vibration sensors.
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• High efficiency DC power supply with dual 17VAC/20VDC power input

Communicator
• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats

Complete Control Via Your Smartphone

Are you looking to control your Ness alarm system via a Free Ness Mezzo app for iphone?

Then add the Ness Bridge Ethernet Module for cost effective self monitoring and alarm control.

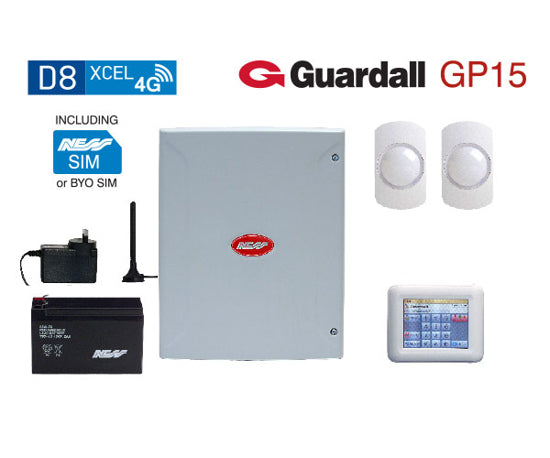

What's included

  • 1 x Ness Security D8XCEL Panel including Power Supply and 12V 7A/H Backup battery
  • 1 x Ness SIM card (unlocked)
  • 1 x  Navigator Touch Screen Keypad
  • 2 x Guardall GP15 PIR 15m


NB - It is recommended a licensed security installer install this product
