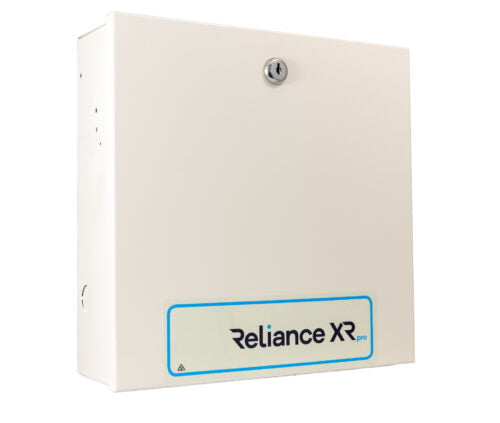

• Reliance XR control panel on a white background

Reliance XR

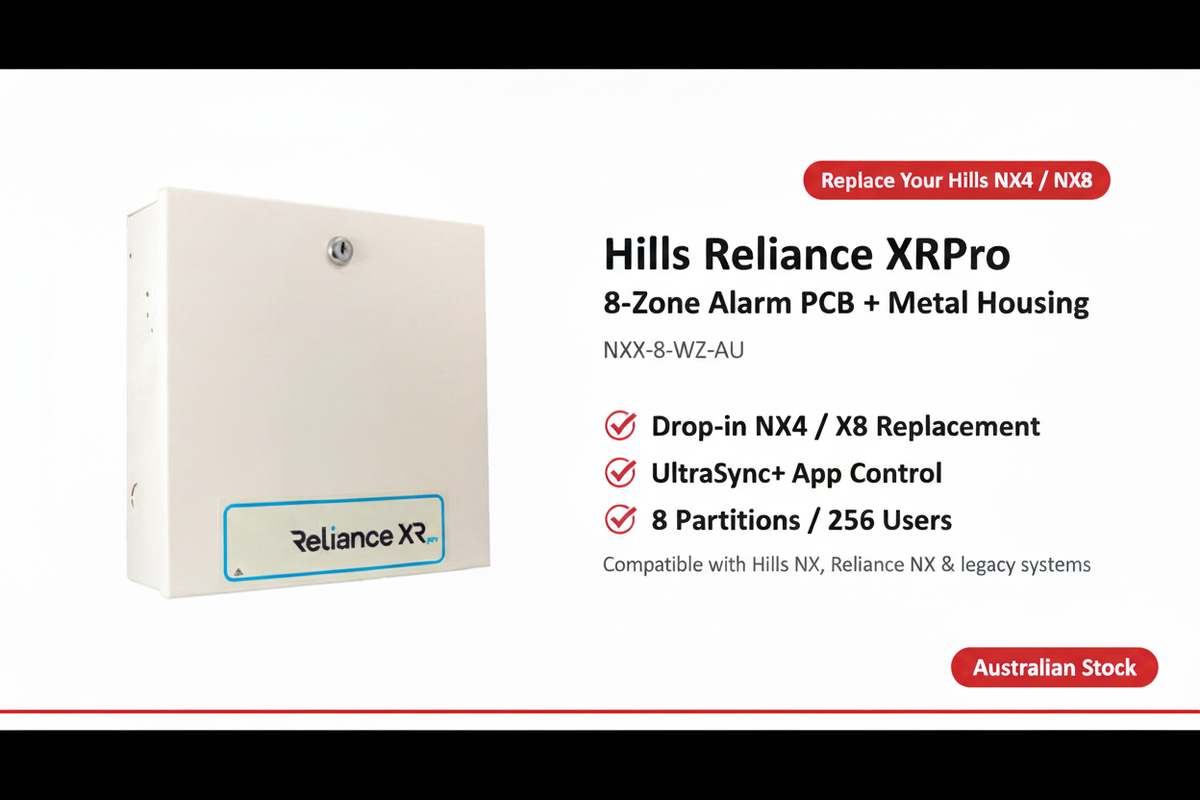

Hills Reliance XRPro 8-Zone Alarm PCB with Metal Housing NXX-8-WZ-AU – NX Upgrade Board

Hills Reliance XRPro 8-Zone Alarm PCB with Metal Housing NXX-8-WZ-AU – NX Upgrade Board

Sale
$426.00
$426.00 $599.00
Tax included. Shipping calculated at checkout.

Upgrade Your Existing NX or Reliance Alarm to XRPro — Without Starting From Scratch

The Hills Reliance XRPro NXX-8-WZ-AU is a drop-in upgrade PCB designed to retrofit directly into existing Reliance NX or Reliance panel enclosures. It brings the full XRPro feature set — WiFi, UltraSync cloud connectivity, dual bus support, and onboard RF receiver — to your existing installation, without the cost of a complete system replacement.

Supplied with a durable metal housing for long-term protection of the electronics.

Features

  • 8-Zone Capacity - Monitor up to 8 security zones for comprehensive home protection
  • Backward Compatibility: Seamlessly integrates with existing Reliance NX or Reliance panels (such as Hills Reliance NX8, R12, R128 alarm systems)
  • WiFi Enabled - Modern wireless connectivity for remote monitoring and control
  • Dual Bus Support: Supports both 4-wire XR bus for newer expansion modules and 3-wire legacy NX/ Reliance bus for older equipment
  • Panel Options: Available in two sizes to suit different installation requirements
  • Onboard Inputs/Outputs: Includes built-in inputs and outputs for seamless integration
  • Web Server Integration: Control, user administration, and panel programming via the built-in web server
  • Auto Enrolment: Supports automatic enrolment of XR series expanders with zone-doubling support
  • 433 MHz RF Receiver: Onboard Legacy & LoNa 433 MHz RF receiver for 63-bit and 80plus accessories
  • Upgradeable Firmware: Firmware can be upgraded in the field
  • Australian Certified - Meets AU security standards and regulations
  • Optional Modules:Reliance alarm 4G/WiFi and 4G plug-on module

 Benefits:

  • Easy Programming: After connecting peripherals, programming can be done via the local keypad, desktop PC, or DLX900 management tool.
  • UltraSync Enabled: Supports connection to the UltraSync network for advanced system features.
  • Mobile App Support: The UltraSync+ app for Apple iPhone/iPad and Android phones provides remote system monitoring and control.

Note: Installation by an experienced security professional is highly recommended for optimal setup and performance.

What's included

Enclosed in a durable metal housing for long-term protection of the electronics.

FAQs

What is the Difference between Hills XR & XRPRO

The Hills XR alarm panel supports up to 8 onboard zones (expandable to 24), up to 4 areas, 99 PIN codes, and up to 8 keypads, (requires wireless module)

The Hills XR PRO alarm panel supports up to 16 onboard zones (expandable to 176), up to 8 areas, 256 PIN codes, supports up to 24 keypads and includes dual ITI wireless receivers. Both models support the UltraSync+ smartphone app.

Do the systems support wireless devices?

Reliance XR supports wireless detectors with an optional module whereas the XRPro includes built-in dual wireless module ready for your to add Reliance XR 80 Wireless Devices

Can I self monitor and control the system from my smartphone ?

Yes. Both Reliance XR and XRPro systems work with the UltraSync+ Mobile App, allowing you to arm/disarm remotely, receive alerts, view event history, and monitor your system in real time. Both systems can also be monitored independently through a monitoring station
